G’day lads,

Mate you should be able to change the back guard, inner and outer struts, do some rewiring for the tail lights,maybe not on the lights you should have leds if the leads are long enough they will nearly fit you should be able to put a softail 200 rear wheel on. You will probably have to also replace the inner bracket at the front of the wheel Depending on the guard you chose you’ll need a license plate bracket and light. You should be able to use the brake rotors but check that in the Harley catalogue. I’m pretty sure the Swingarm is the same and the drive belt should be as well go to the dealer they will tell you or again flip through the catalogue or check doctor google.  If you get online you can see where guys have put breakout front wheels on by rights you should only need a front guard riser kit. The chart above gives you the sizing as a max fit of 21x3.5 which is a breakout size you may need to some minor shim mods. I’d ask some questions about your front suspension but should be ok. The riser kits only lift the front guard about an inch or so

You end up doing the conversion mate? I'm looking to do something similar but without fat spokes.

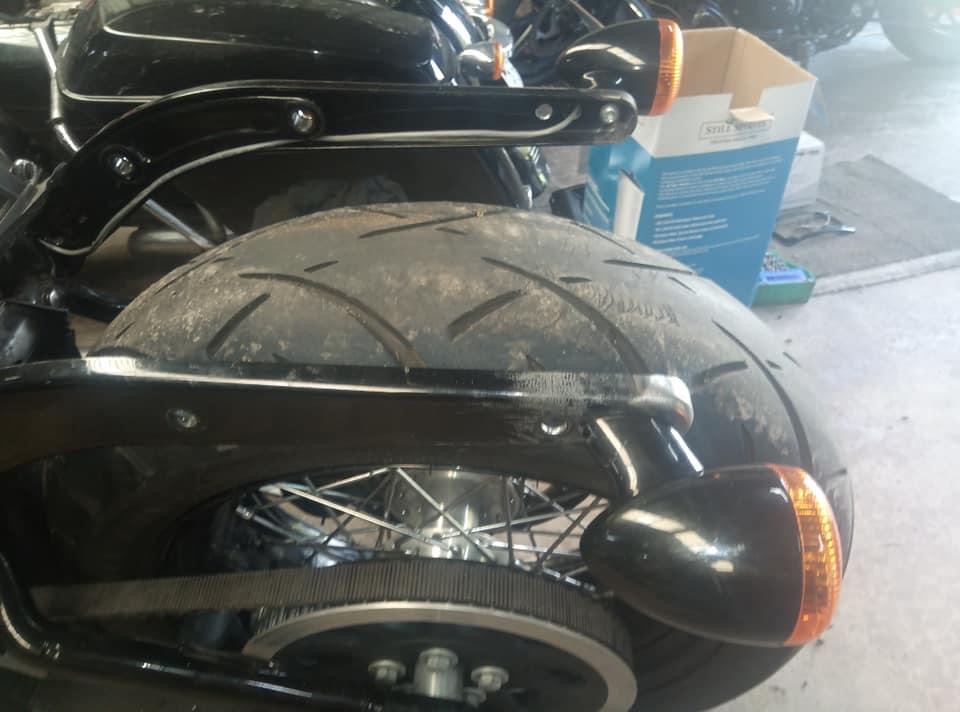

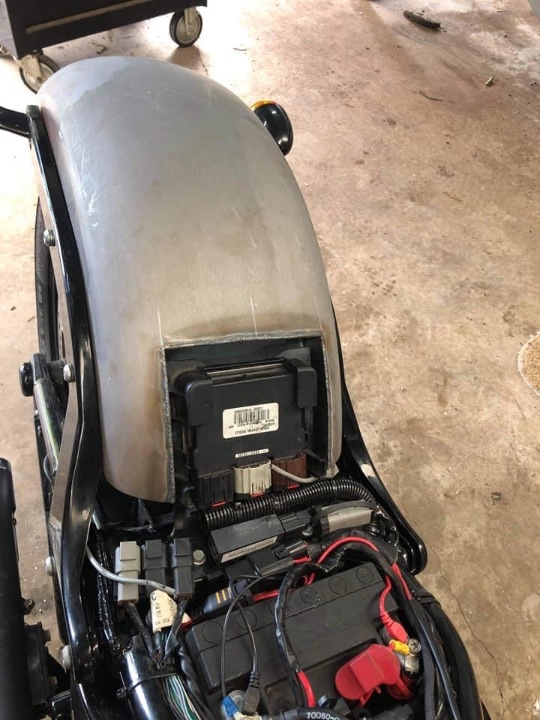

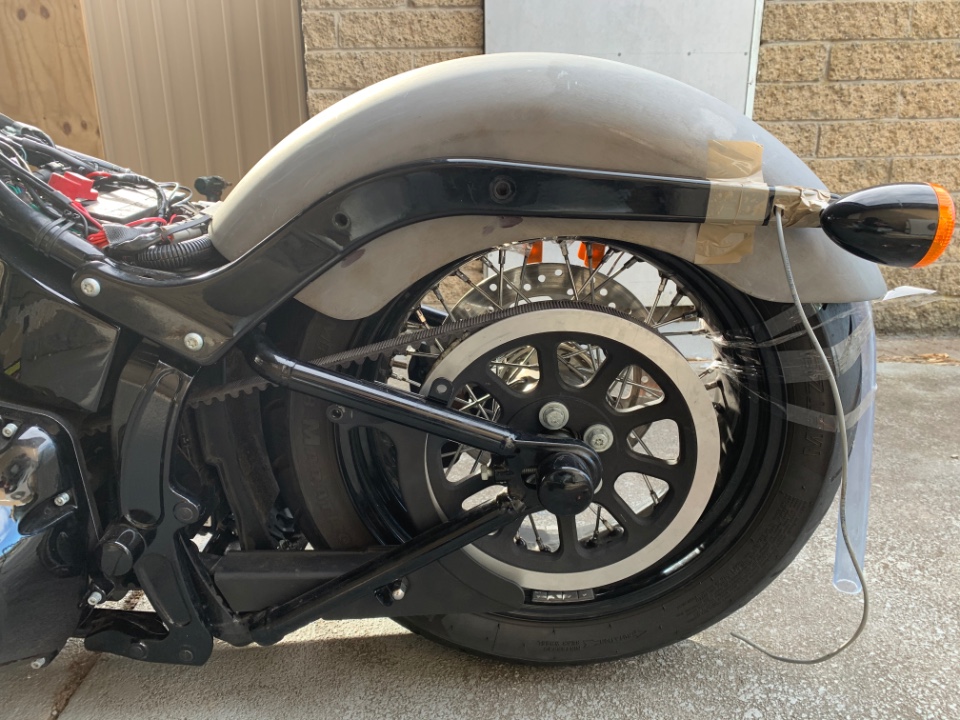

Currently underway!

Looks good.   What size is the rear wheel now? and how much work was required to go that size?

This is the website http://www.hdwheels.com/Product.htm

Did you need to space the belt and pulleys? And what fender will you be putting on?
