Today I did a set up on a TBW set up. had to do this a bit different because of the Butterfly servo controller.
and the breather gallery in the backing plate

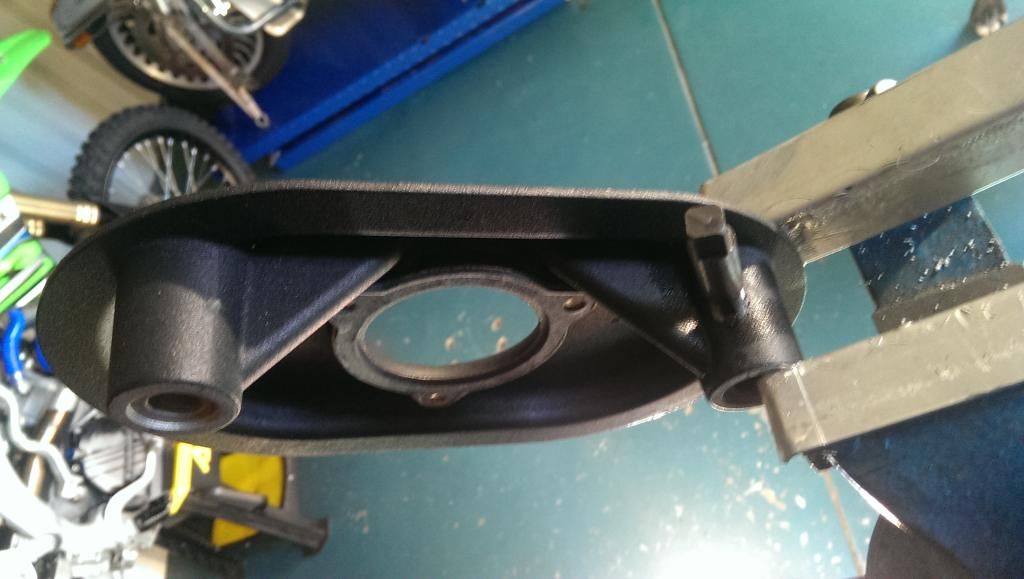

so after I figured where the fittings could fit in ( measure twice drill once) I drilled a pilot hole then a 8.5mm taping hole for the 1/8bsp fitting
[URL=http://s307.photobucket.com/user/Ando1450/media/IMAG3966_zpsmuxsyesb.jpg.html][/URL]

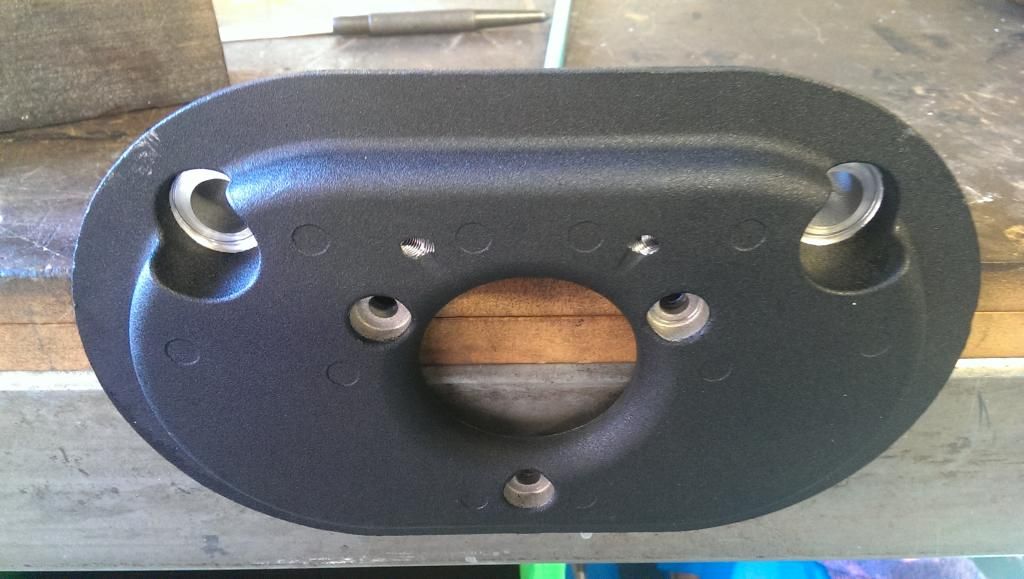

Then with a 5 mm tap I tapped out the breather galleries
[URL=http://s307.photobucket.com/user/Ando1450/media/IMAG3969_zpshc75eigq.jpg.html][/URL]

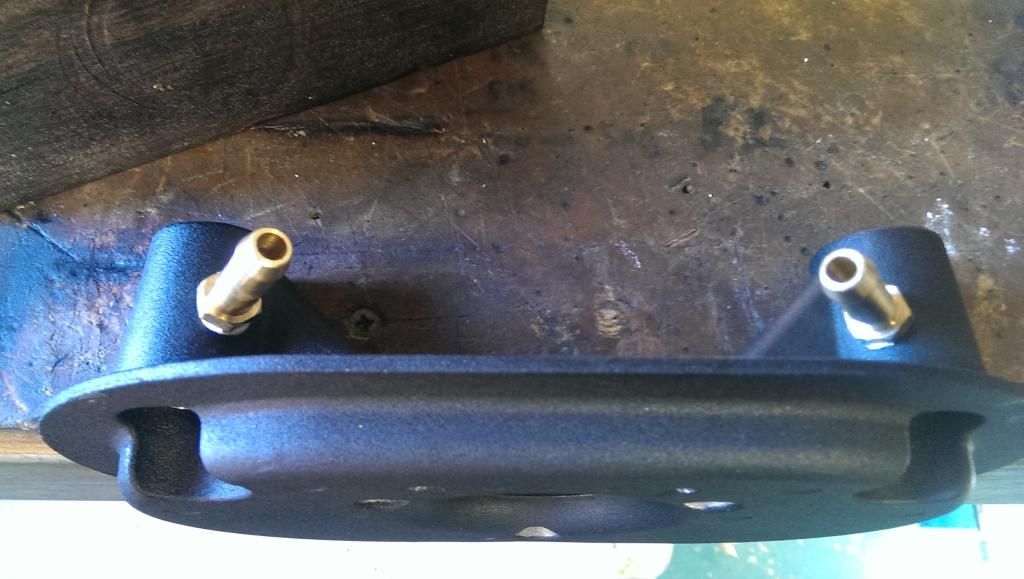

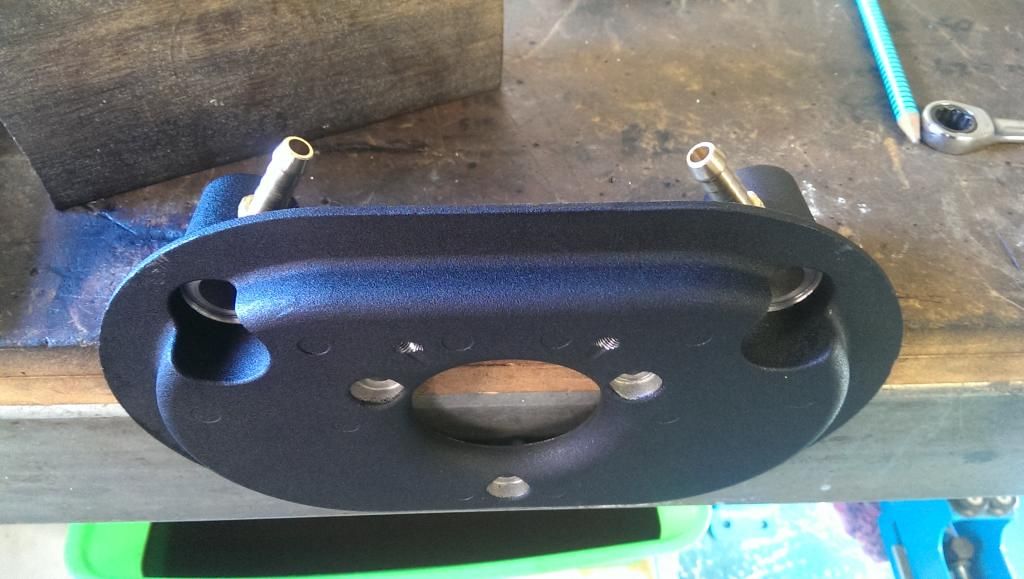

bit of thread sealant and screwed in the 1/8 BSP TO 5/16 hose barb fittings
[URL=http://s307.photobucket.com/user/Ando1450/media/IMAG3970_zpse1bzyybr.jpg.html][/URL]
[URL=http://s307.photobucket.com/user/Ando1450/media/IMAG3971_zpsbbpxzl63.jpg.html][/URL]

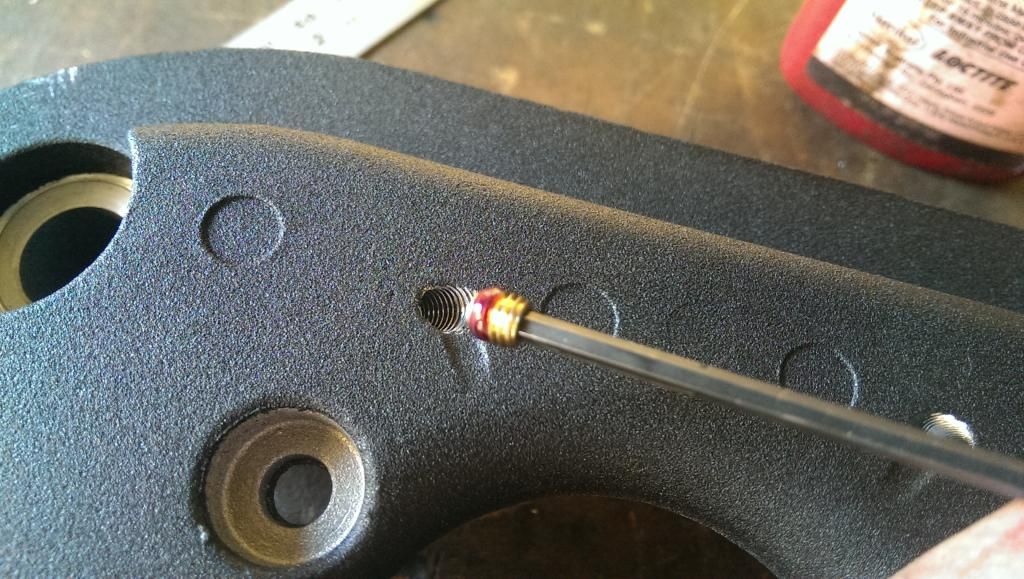

Red Loctite on the 5mm grub screws and screw in and the centre popped the thread after they are screwed in tight ( don't want these coning out going through the motor)
[URL=http://s307.photobucket.com/user/Ando1450/media/IMAG3972_zpsozxin8it.jpg.html][/URL]

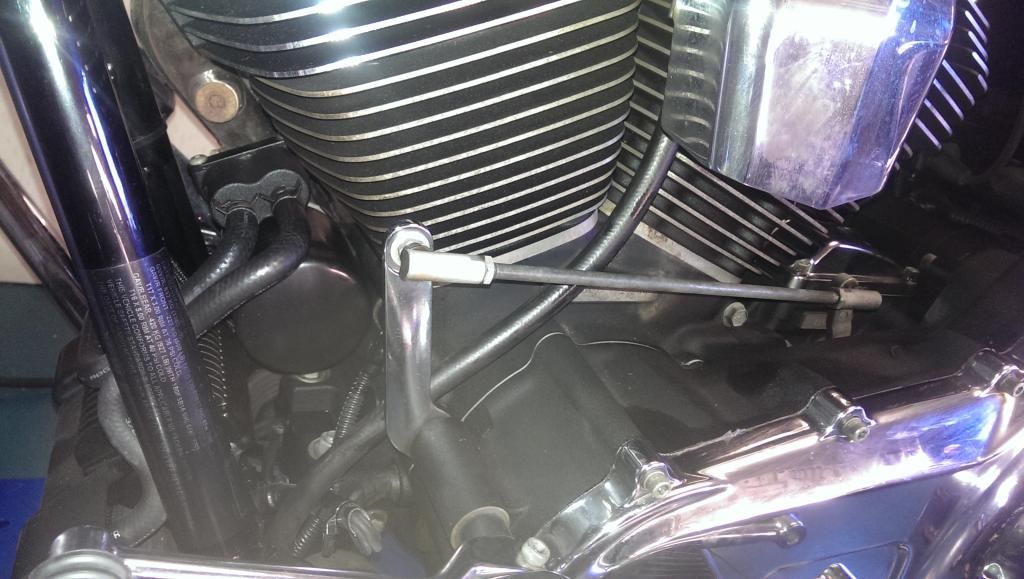

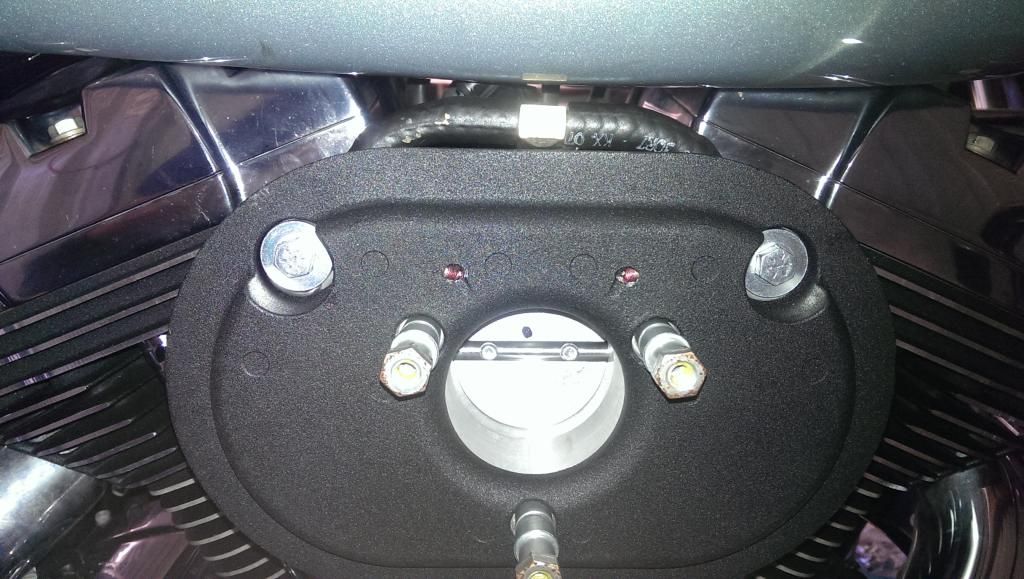

Fitted up you can see the breather hose above the filter backing plate, has a tee piece with the hose running across the TB down under the horn to the front of the frame ( can go anywhere with it from here)
