Random plug by injectors

  • anonymousrob
    anonymousrob
    10 years ago

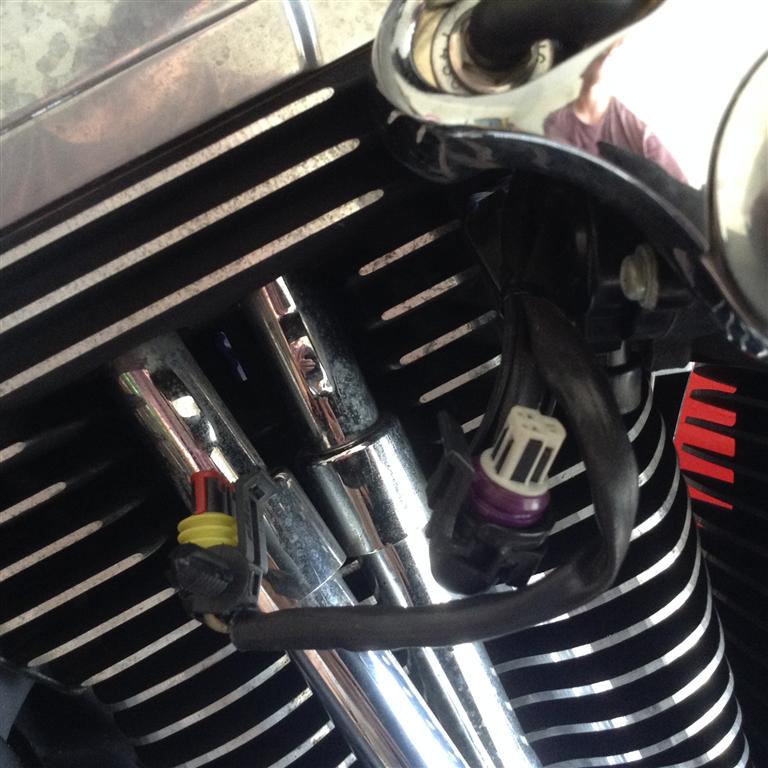

    Does anyone know what this lime and red connector is? It runs through the same loom as the TP sensor but I can't see anywhere for it to plug into. Ithe bike sometimes won't start when it's warmed up and 'm getting codes P0261 and P0263 and have checked the injector wiring with a wiggle test and traced it back but it seems fine so I'm not sure if this plug could have something to do with it.  The bike is an '09 FXDF.

    Pearl Black '09 FXDF - V&H Shortshots, S&S Double Breather, Breakout Bars, Willie G Collection Parts, Blacked Out.








  • anonymousrob
    anonymousrob
    10 years ago

    This is the induction module diagram, all the connections seem to have their corresponding plugs.

    Pearl Black '09 FXDF - V&H Shortshots, S&S Double Breather, Breakout Bars, Willie G Collection Parts, Blacked Out.


  • Sparra
    Sparra
    10 years ago

    It looks like the plug on my Wideglide that plugged onto the back of the standard air filter...When I replaced the filter I just left this unplugged tucked away behind the new airfilter with no adverse effects...

  • anonymousrob
    anonymousrob
    10 years ago

    Ah Righto thanks that explains it.
