Hello to all, I would like to fit a spoked back wheel to my 91evo, would anyone know if my pulley will fit a wheel of an 06 softail? One has come up for sale, it has the disk but no pulley! Is it possible? Cheers Corey





pully centre would be different size  bolt pattern would be same , axle dia no evo 3/4" dia , could change bearings maybe a stuff around a bit

I'm as happy as a pig in shit!

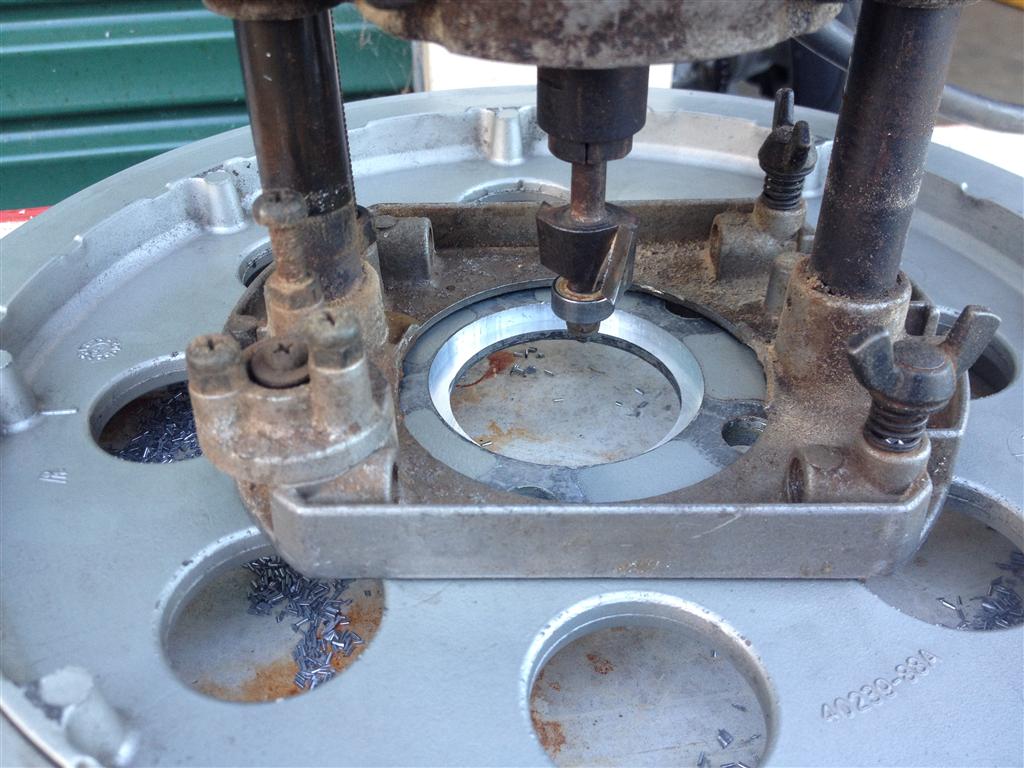

The FLSTCI spoked back wheel fit, I had to re space both sides to centre the wheel, all I have to do is machine my pulley centre hole out to 56.5mm!

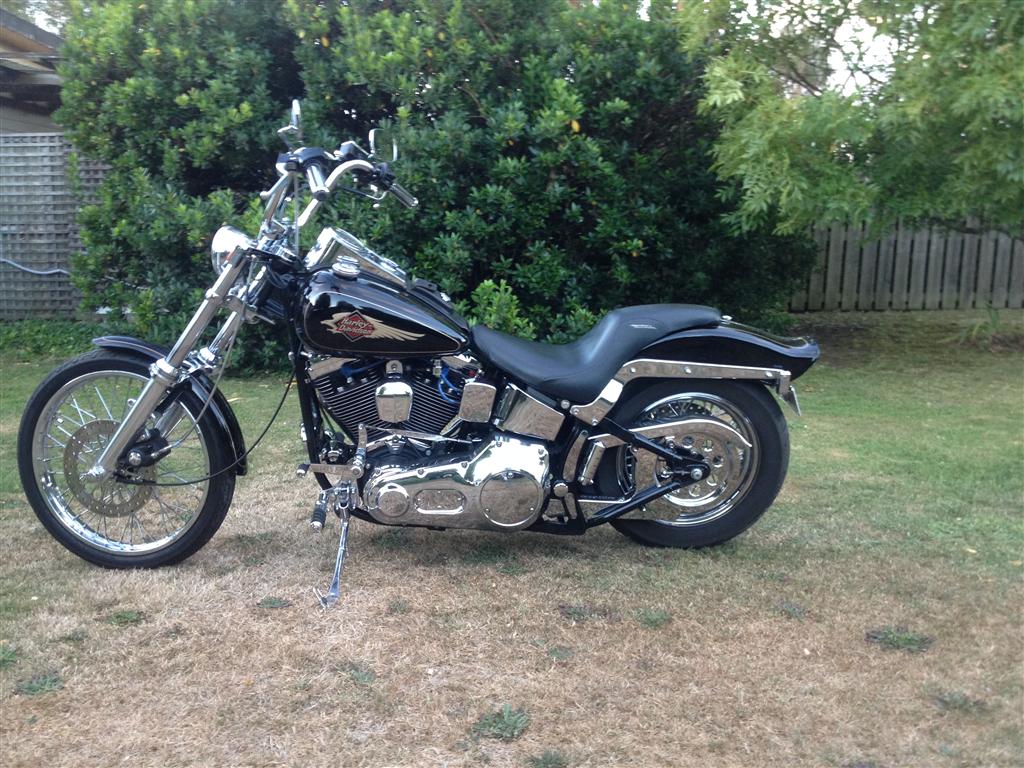

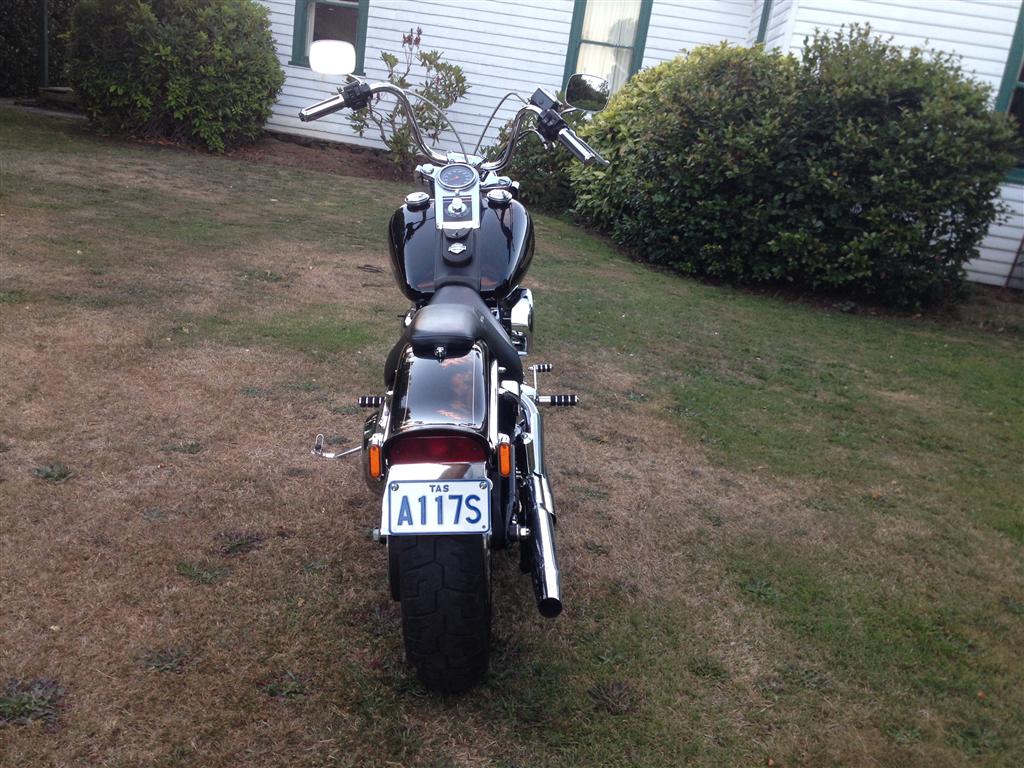

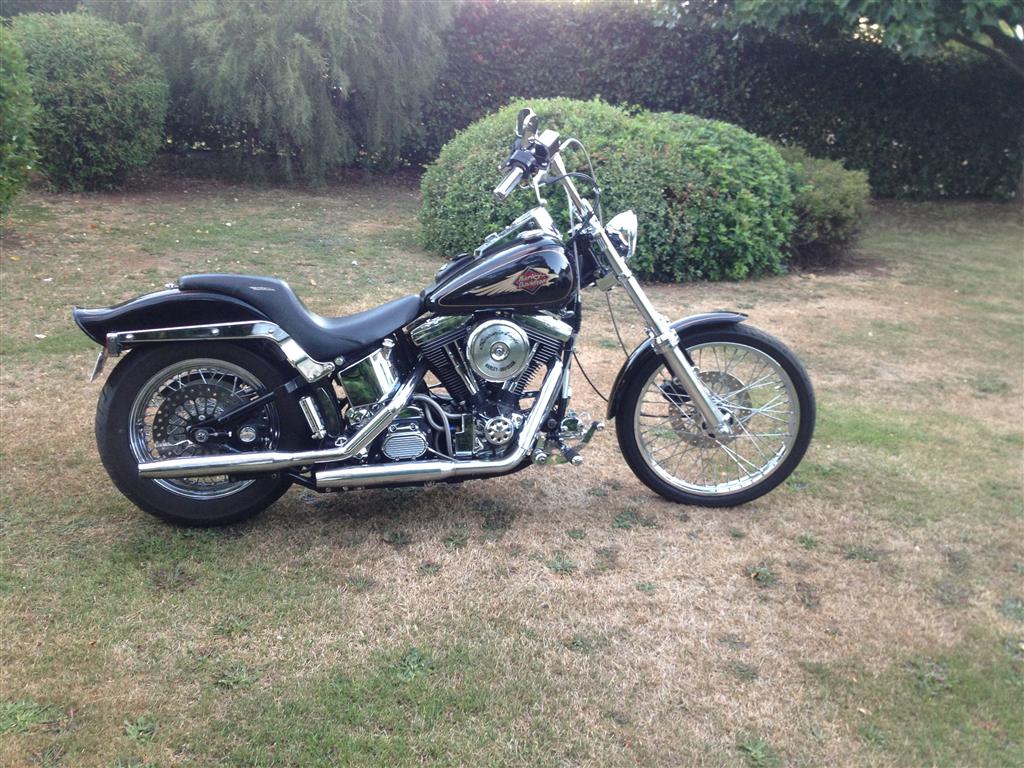

machined the pulley to fit, wheel fits in nice and snug, need to space the pulley out a fraction to have the belt running true, all in all it turned out very good, the 150 tyre makes alot of difference,fills the back end out nicel;y











cheers Corey

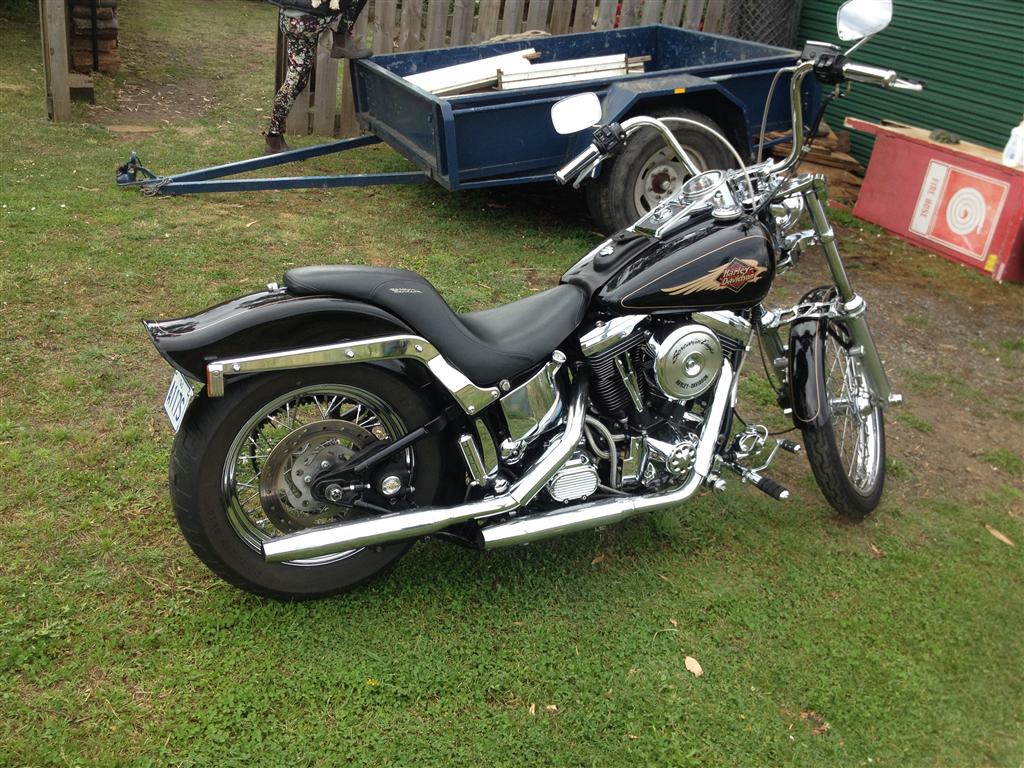

Finally I got the rear wheel changed on my 87 FXST.  Went from the standard factory fitted 130 up to 150.  Fills out the rear fender nicely and make the ass end look tuff.

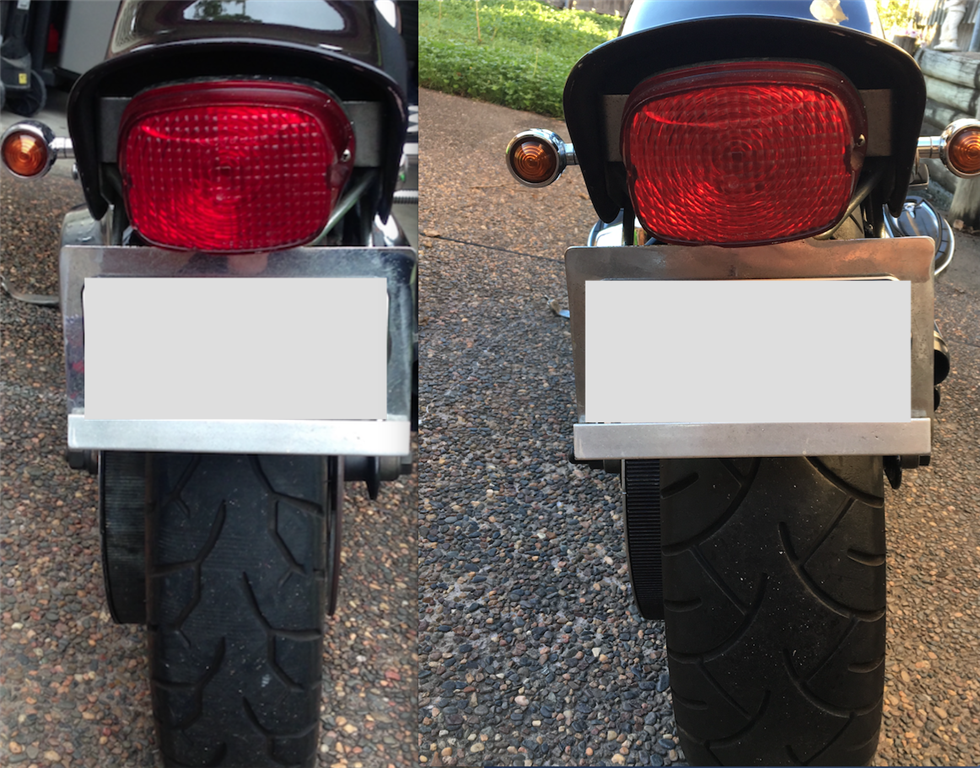

Here's the before and after comparison
