oil leak

  • dropbear
    dropbear
    12 years ago

    many thanks to you Daddy Racer for the talcum powder  trick , the true point of origin of the leak showed up straight away . Only problem is that its coming from behind the rubber grommet  that has two wires that go to the stator !!! . Sum Ting Wong             Advice please     Wayne  2000 Duece

  • daddyracer56
    daddyracer56
    12 years ago

     i have before have had good luck with just cleaning  & using black silastic pull off the top conector them 2 wires come from the reg , clean around the female 2 pin plug in the case & blow dry ,   try too pull it out just a little bit  & use a feeler gauge too squish the silastic down inbetween   & finnish off with your finger around the base leaving a little beed, let dry over night , clean the female & male plug conectors before fitting & make sure there a tight fit , if it leaks you will have too pull the primary chain & the stator off too fix it proper,

  • dropbear
    dropbear
    12 years ago

    Thanks for the advice daddy r, but where is the oil coming from ? the crank , the primary , the clutch .I was thinking anywhere near the stator would be oil free.

  • speedzter
    speedzter
    12 years ago
    DB, the Stator is in the primary, and that's where the oil is coming from.
    I had the same leak after refitting my motor recently.
    I cleaned around the grommet with a syringe filled with thinners, then used silicone in the syringe to pump it in behind.
    Probably not a permanent fix, but will work until you feel like stripping the primary.
  • daddyracer56
    daddyracer56
    12 years ago

     i made a dodo pre 2000 have a stator 2 pin plug , 2000up twin cammer have a 3 wire plug but same fix , it's only a bit of primary oil as long as it's not bad  & going on the rear belt or tyre , but check oil level anyway

  • Aunty X
    Aunty X
    12 years ago
    It needs to be replaced. It's a solid copper core. Take it to the shop for repairs. Fairly cheap exercise, and a common problem. Silicon does work as a temporary measure.
  • dropbear
    dropbear
    12 years ago

    Thanks for the tips , Ireckon your probably right about the shop price, speedstr ,say I go with silicone method, and it works, what internal damage will be done, the oil shouldn"t be there should it? or is it just being flicked there by the primary or does aseal need replacing or is it just a grommet gone hard .

  • speedzter
    speedzter
    12 years ago

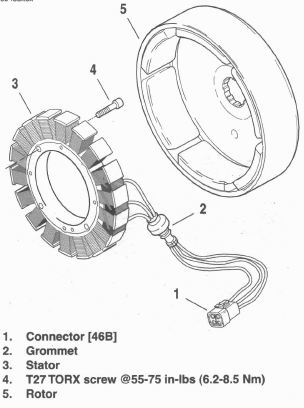

     The stator is inside your primary, behind the rotor and the compensating sprocket. The primary is obviously part filled with oil. (07 softail in pic)

    The oil is leaking past the Grommet (probably hard). Can't do any harm to use sealer on the outside.


  • daddyracer56
    daddyracer56
    12 years ago

    there is no primary breather it can build a bit of presure up in there , the g/box & the engine have a breather each ,    but there is a lot of oil getting spun up & around as well in the primary

  • dropbear
    dropbear
    12 years ago

    Thanks guys , I"ll go with the silicone fix , and  report back on how it goes , thanks for your knowledge . DB
