front end project underway

1/2
  • Daggs
    Daggs
    14 years ago

    hey all,

    I'm throwing on some black fat bob triple trees, epoxy painting my fork leg lowers and fitting some different bars, those parts are on route from the states (after trying real hard to get exactly what I wanted locally and/or with out getting ripped off) no luck there so to M&M Cycles I went.

    Special thanks to Walka who tried to help out with the bars, but I'm a fussy bastard...

    Made up the needed spacers the other day at work and ripped down the front end today.

    Also made a spring compressor as last time, when I fitted my race tech springs, I had a hell of a time refitting the caps. I never changed the fork oil last time either as I didn't take the forks right out of the bike so will do that now as they are certainly off the bike now!! heres some pics so far.....

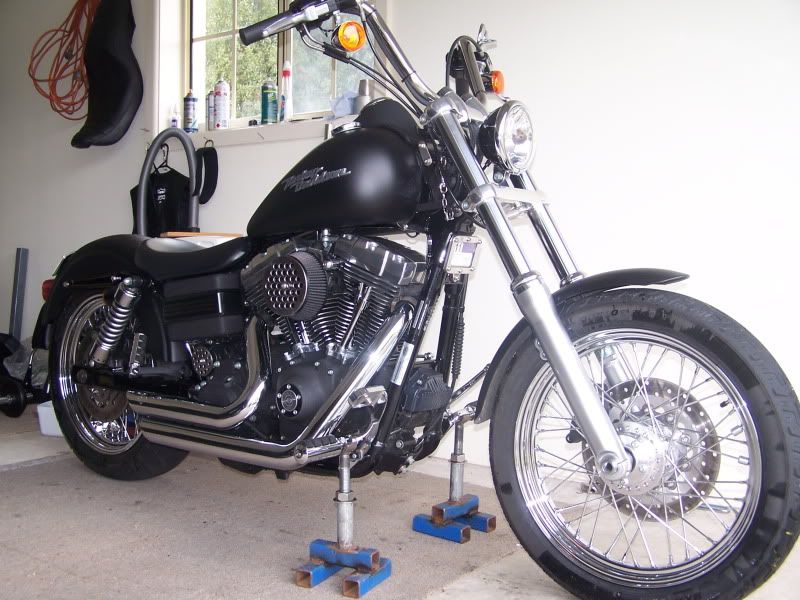

    bike on stands I made

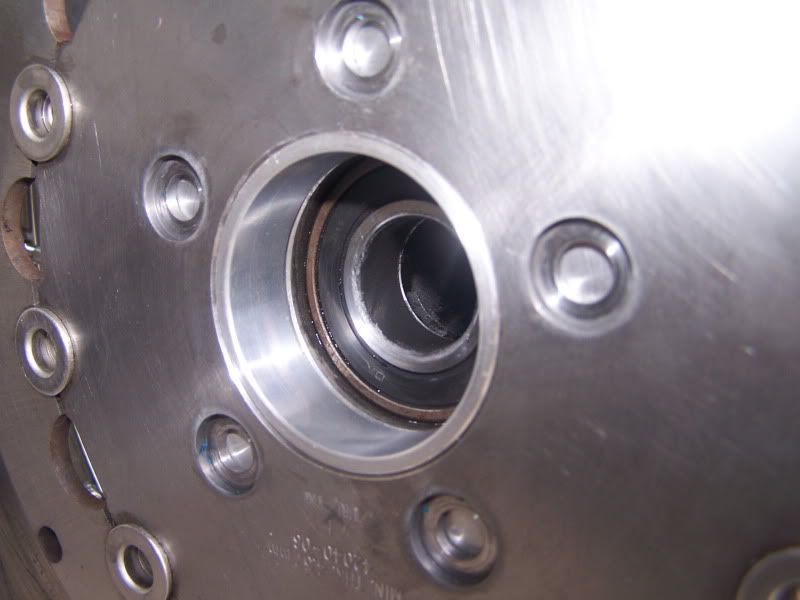

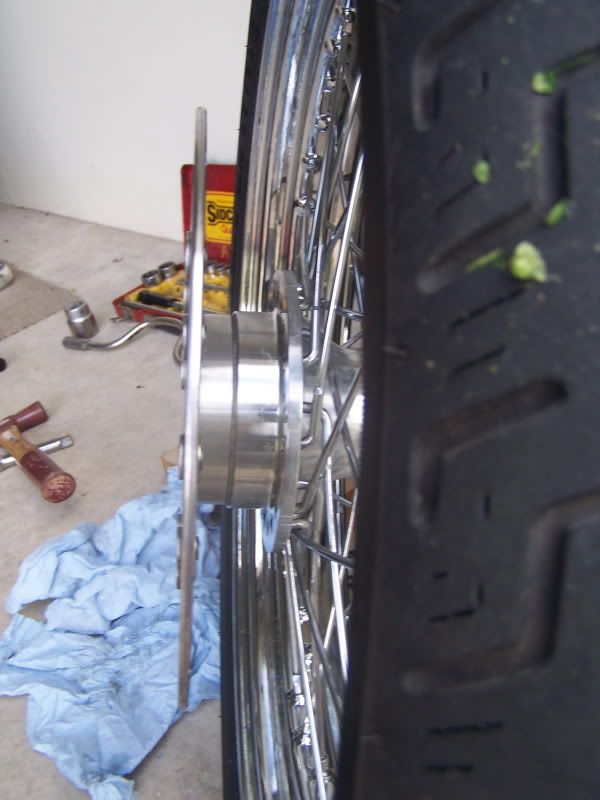

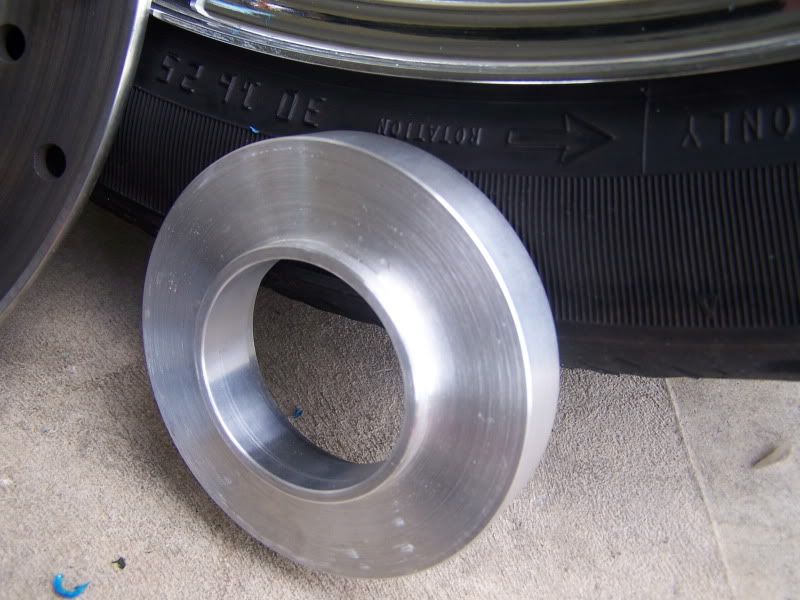

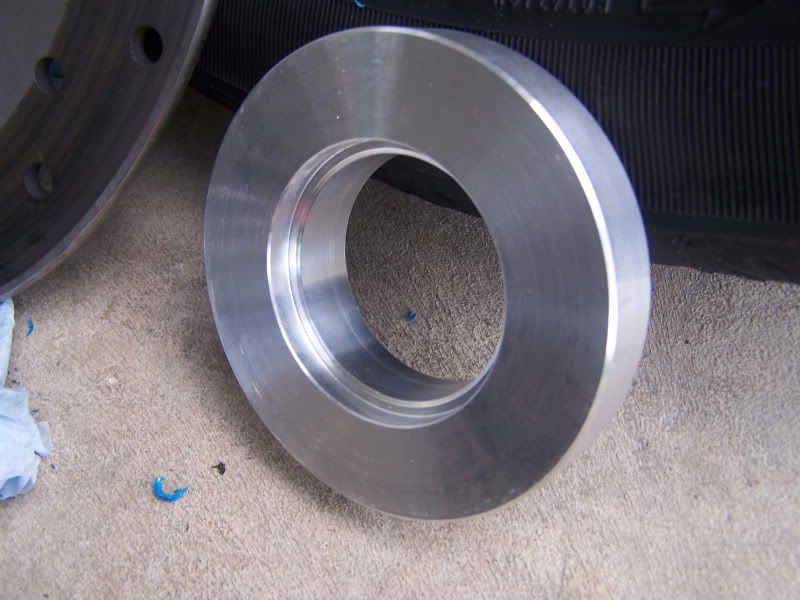

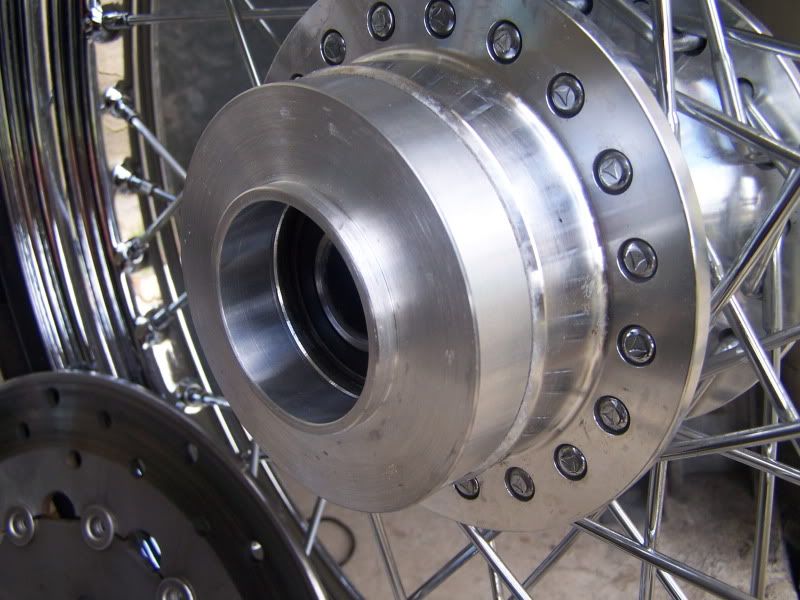

    a few shots of the T6 Alloy spacer I made to keep the rotor lined up with caliper, I just have to drill the through hole for mounting bolts....

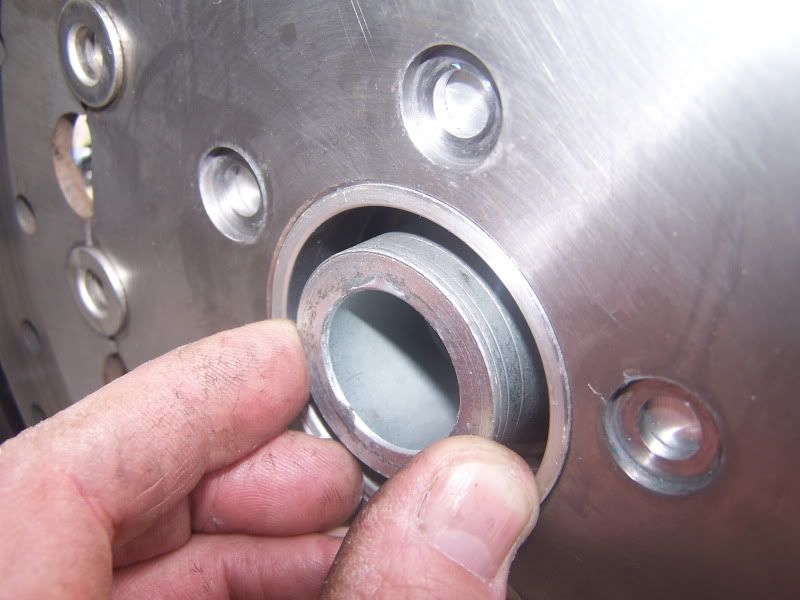

    old axle / wheel spacer

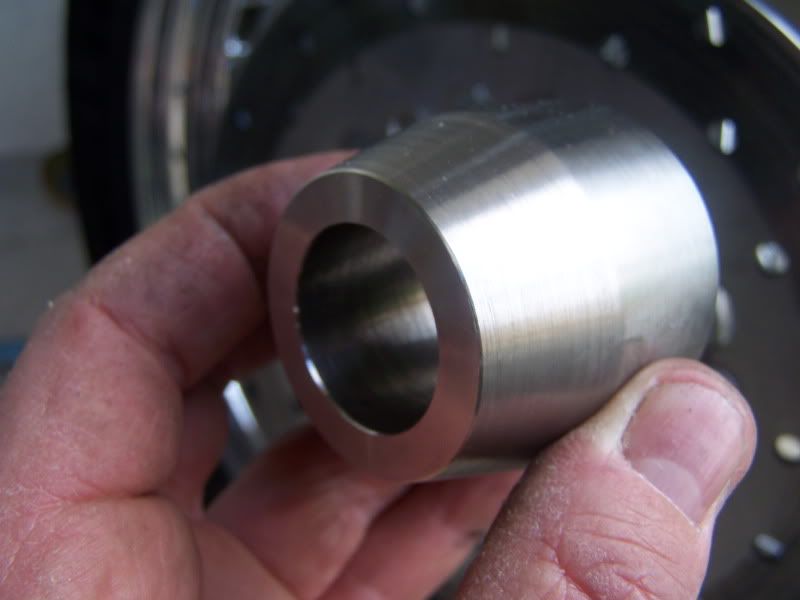

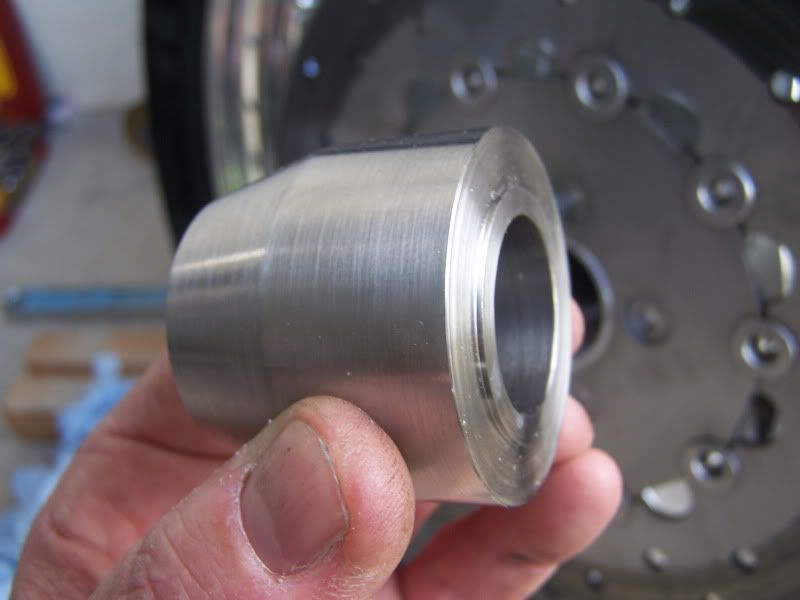

    new stainless steel tapered spacer I knocked up

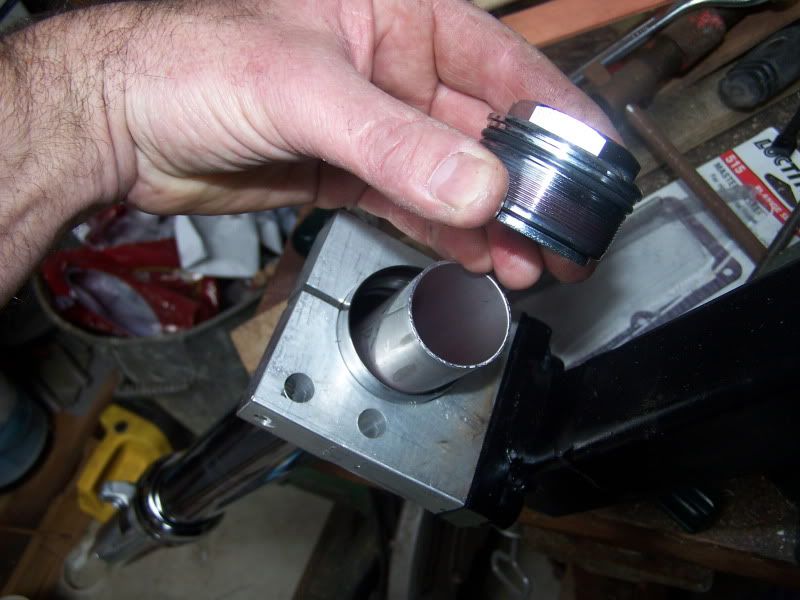

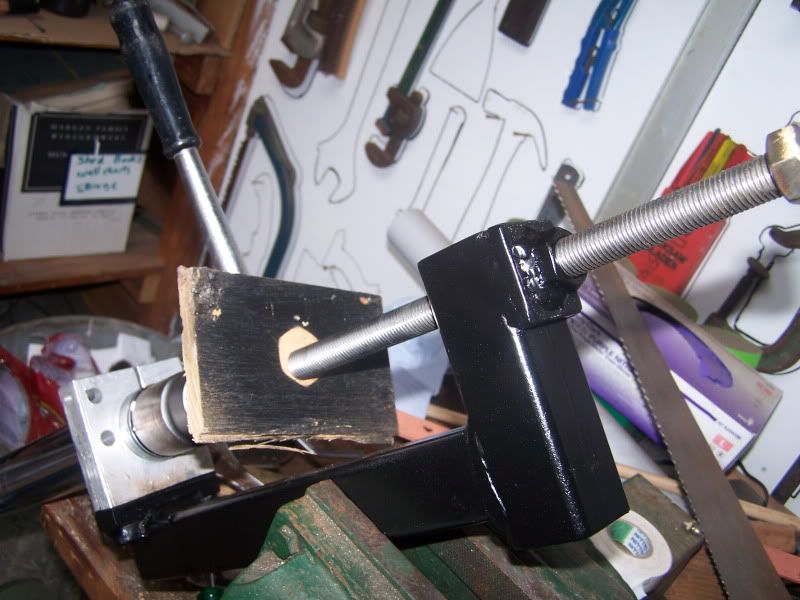

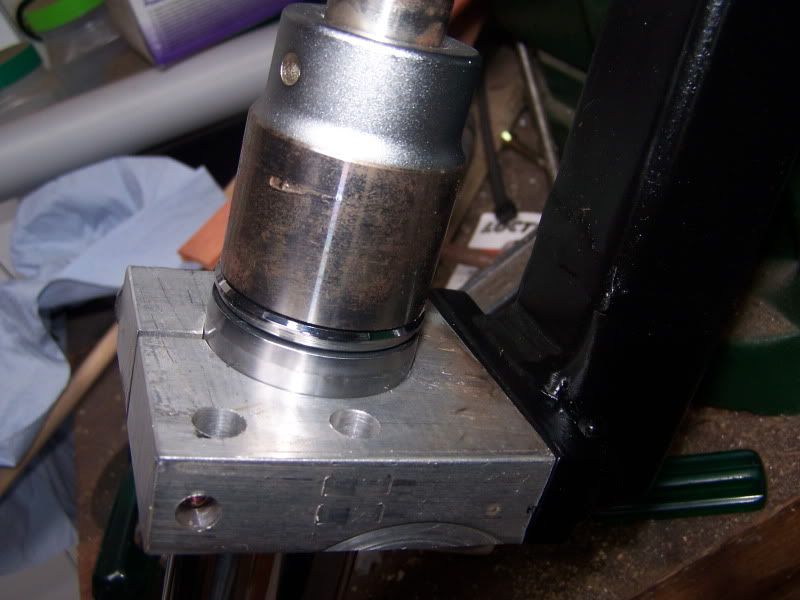

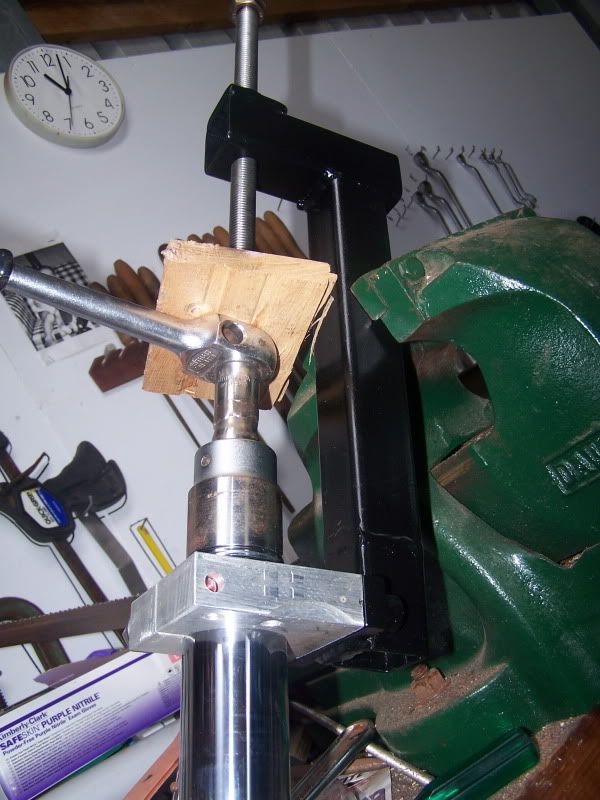

    Spring compressor

    sorry if I bored you...   feel free to comment.........





  • Spinner
    Spinner
    14 years ago

    Daggs.

    Thats going to look good.

    I am in the process of upgrading the front end of my 09 FXDC at the moment i am fitting 40mm thick wide glide triple trees with 3 degrees of rake + 2" over tubes.

    The forks already have race tech springs and gold valves fitted, i am going to fit a 21" wide glide renagade pheonix front wheeI i am also going to put a 6.250 x 17 pheonix rim on the back it will be fitted with a dyna hub so all should bolt up ok could you let us know if you had any issues when you fitted your wheel was there any problems with the belt clearance which tyre did you use or anyuseful info you can pass on.

  • Daggs
    Daggs
    14 years ago
    I'm not interested in any extra rake or 21" wheel, just wanted wider trees so went the Fat Bob trees,

    heres my rear 200 mod post, all the info is there

    http://www.hdforums.com.au/Default.aspx?tabid=71&forumid=24&tpage=1&view=topic&postid=147309#147738
  • Daggs
    Daggs
    14 years ago
    fitted new trees and whacked the forks back in tonight, lookin' good.............
  • Sparra
    Sparra
    14 years ago

    Sounds like it will be a good thing Daggs...Don't suppose you or anyone else know wether there is a manufactured spacer kit available to space out a narrow glide 19" wheel to fit a Softail front end???

  • Daggs
    Daggs
    14 years ago
    yeah I'll put up some pics when I'm Finished, over the weekend sometime.

    The trees were $198 US from M&M Cycles in the states

    As for a spacer kit, no i don't know sorry, its not something I would buy but I'm sure something would be available in america
  • wilso
    wilso
    14 years ago
    nice job so far - awesome idea for the stands , hold the bike fairly sturdy?
  • Daggs
    Daggs
    14 years ago
    very sturdy...

    to lift the rear I just put my floor jack under the rear frame, just in front of the swingarm.

    depending on what Im doing then I can put my car axle stands under the swingarm.

    Solid as a rock. There is obviously some rubber strip in the piece that goes under the forward controls so the chrome doesn't get marked.
  • Stretch
    Stretch
    14 years ago

     Great work there Daggs,will look forward to checking it out when we meet up for edenhope run. Providing i can get mine all sorted by then,fitting a wide glide front end to my sporty,new bars with internal wiring and modified heads.

  • Daggs
    Daggs
    14 years ago
    Hilly, yeah pretty cheap i thought too, $400 from the dealers here...

    in the US the standard mid glide top triple tree alone costs US$300+ but the complete black Fat bob wide trees are only $198 ???

    Stretch, yeah mate that sounds good, You'll have it sorted mate !!

    I'm still waiting for my new bars to arrive as well, internal wire them too, thats a fun job let me tell you lol
  • Stretch
    Stretch
    14 years ago
    Yep doin the bars was a right pain,not as easy as it looks to do. Give me a yell if ya need a hand when u get your bars daggs.
  • Daggs
    Daggs
    14 years ago
    thanks stretch, i've done it b4 a couple of times so i'll be fine

    just hope they show up soon, they're coming from the US so prob still a couple of weeks away
  • Daggs
    Daggs
    14 years ago

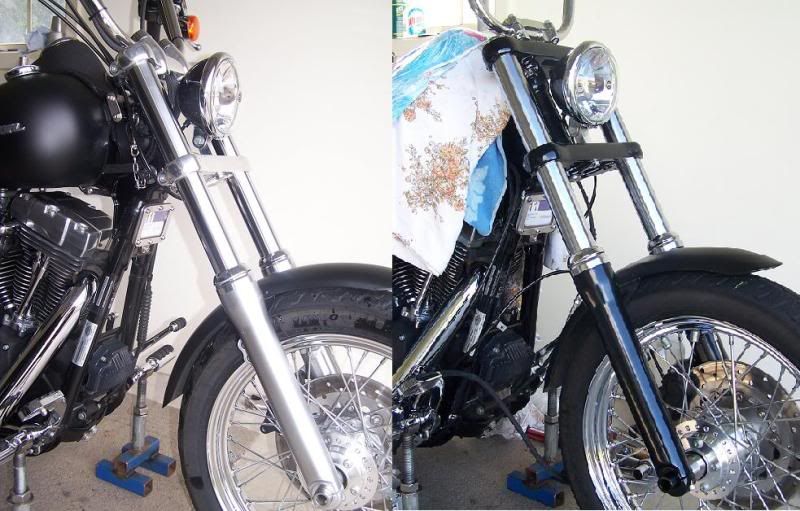

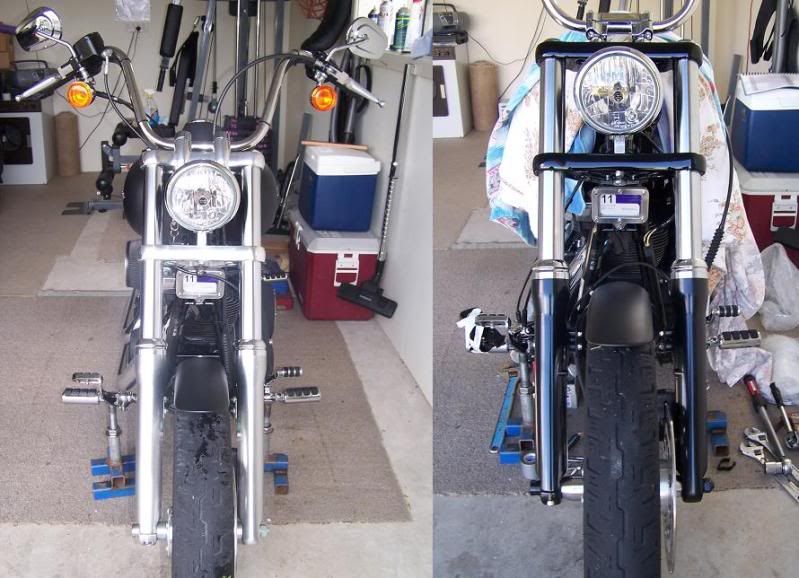

    heres a couple of side by side shots, can't finish off yet, still waiting for my bars.....

    Front on...

    side on

  • Dan
    Dan
    14 years ago
    nice work mate....the only issue is ya got me thinkin, and that never makes the minister for finance happy....
  • Daggs
    Daggs
    14 years ago
    bought her a $400 dress just before i started this lol
  • monarofan
    monarofan
    14 years ago
    me likey, nice work
  • skid
    skid
    14 years ago

    hi daggs great work mate , just out of interest how wide was ur rotor spacer



    cheers

    skid

  • Daggs
    Daggs
    13 years ago
    I'm working away at the moment, will let you know when I get home Skid
  • kickinon
    kickinon
    13 years ago
    Daggs,,Very nice mods.!! What front axle is that?
    or did you run one up yourself?
  • Daggs
    Daggs
    13 years ago
    Bought the black fat bob trees and axle from m&m in the states and machined all the spacers myself
