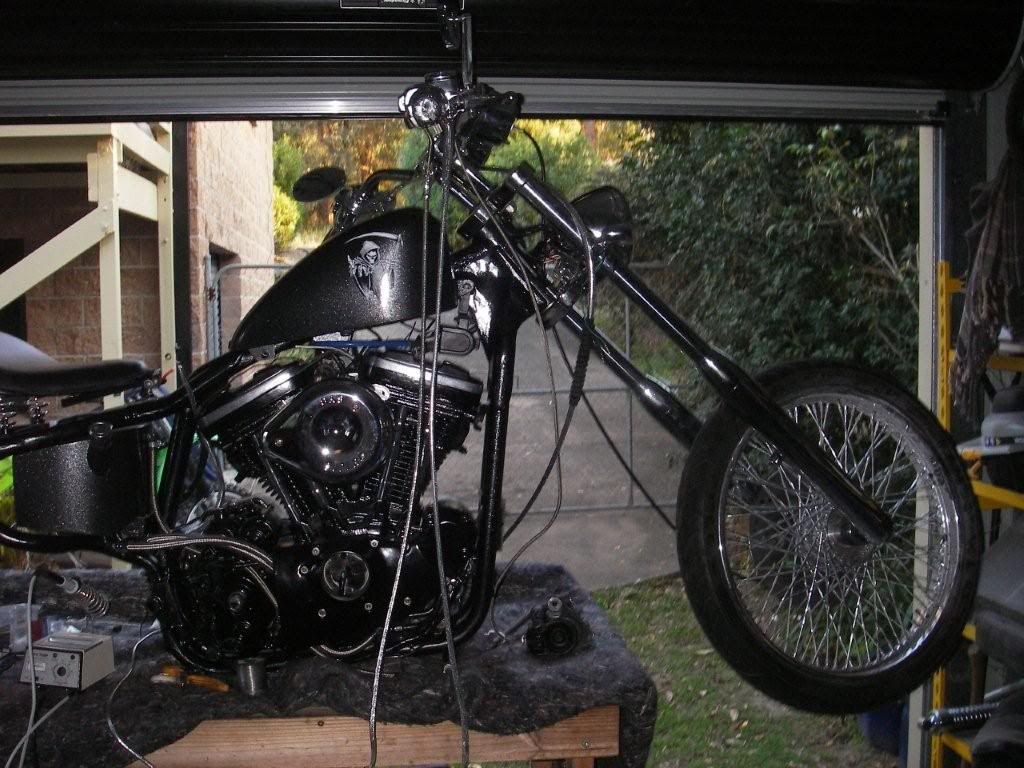

Just thought i'd put a photo up here of my current build. Still got a bit to go but its getting there.

Post some more Photos,,,, This looks very interesting

Here's a few more pictures. Hope no one was expecting to see a restoration.

This is where it all began.

After the first rebuild (still not satisfied though)

This time around I thought I'd try something different, very different.

On the way back or black

Bugger I should have realised when you stretch a bike the wiring won't reach

Just about to come down off the bench.

Is that Hammer tone ? Love it

No it's not hammer tone paint. Its my own combination. It's black base coat then matte clear with platinum flakes in it. It's different but I'm happy with it.

nice swing arm , did you make it??.cheers..dc..

It's the original one stretched and widend with the original gussets put back in place.

Not trying to steal your thread, muzza, but nearly finished my "86xlh1100 except for ignition. Mine runs points but I can"t find any info in the manual as they all seem to have electronic ign. As it"s a transition year , did some come with points or has mine been changed, just thought someone might know northey

Im not sure, I think it should have Points. I've just had mine changed to a Electronic. and it's the best, Fires up really easy.

I know mine had electronic from new but as they have almost identical cases and run pretty much the same 4 spd box as the iron head models it wouldn't surprise me if the early 1100's didn't run the same ignition system as well. I would be looking at the iron head manual for info on how to set it up, might get you out of trouble. I really doubt anyone would change it back to points from whats not a bad electronic setup. That said I've seen stranger things done to bikes (mine for instance)
Regards Muzza

Thanks for the info.I will try to get it running on the points before I decide which way to go.Any one got a points coil under the bench they want to sell??? cheers northey

A coil, no prob

Yeah, apparently they are different to the electronic ign. coil, let me know details cheers northey

Heres the basic specs of this bike at this stage.

XLH1100 Evo

V2 Andrews Cams

Andrews pushrods

S & S e type carb

Andrews gears kit

300x35x18  rear (80 spoke)

21 front (80 Spoke)

Swingarm (owner modified)

DNA w/glide front end

Springer headlight

farward controls (wildrider)

Softale oil tank (owner modified)

Ultima seat (sprung solo)

Hagon lower progressive shocks

Rake including 6 deg' over trees 45 deg overall

Frame widend and stretched

Theres a lot more but this is all I can think of at the moment. Hope you find it interesting its been a lot of fun so far.









looking bloody great be good ta see the end product

Just thought I'd post a few more picks.







neat bike bro, congrats


livetoride

now thats a back wheel!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

FOR SALE



THE BIKE YOU SEE DISPLAYED ON THIS THREAD IS NOW FOR SALE

I'M SORRY TO SAY THAT DUE TO A SEVERE DOWNTURN IN BUSINESS

I CANNOT AFFORD TO COMPLETE IT.

THE HARD WORKS BEEN DONE.

THIS BIKE IS CURRENTLY REGISTERED IN NSW TILL JANUARY

MOST PARTS NEEDED TO COMPLETE ARE GOING WITH IT.

ALL FAIR DINKUM OFFERS OVER $12000 WILL BE CONSIDERED.



CALL MUZZA ON

0429 425348
